302. Conventional Wrapped Narrow V-Belts

Narrow V-belts was developed to transmit a higher torque in a small assembly area, which enables space saving, high speed drive, and reduce the cost of operating and maintenance.

Description

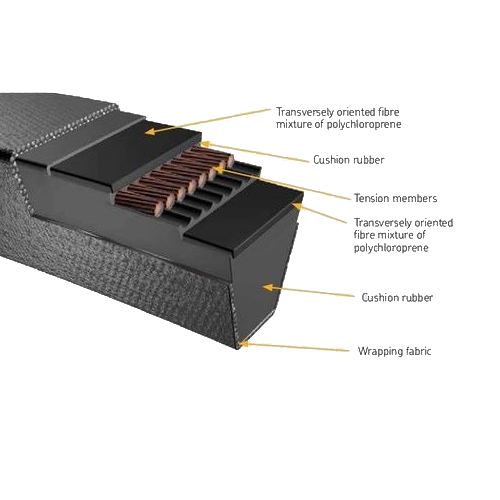

Conventional Wrapped Narrow V-Belts
Belt Description SPZ SPA SPB SPC 3V 5V 8V
Back width             (mm) 9.7 12.7 16.3 22 9 15 25
Primitive width    (mm) 8.5 11 14 19
Height                     (mm) 8 10 13 18 8 13 23
Length (Li)             (mm) 525-3563 665-4518 1272-8522 2030-15030 635-3555 1270-9015 2540-12700
Type SPZ 512-3550 SPA 647-4500 SPB 1250-8500 SPC 2000-15000 3V 250-1400 5V 500-3550 8V 1000-5000
