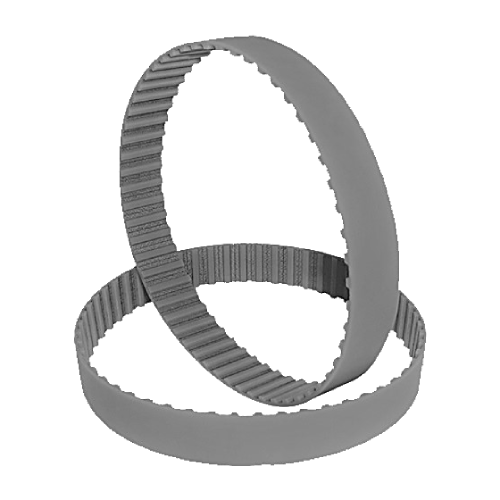

312. Polyurethane Timing Belts

Polyurethane timing belts are the best solution in aggressive, oiled, food environments and for transport system. Thanks to the teeth that individually fits in a pulley, this synchronous belts assures, a precise positioning in a drive systems, without skid.  Applications in machine tools, mixing machines, glass industry machines, linear transport system in industrial and food processes.

Type: T2.5, T5, T10, AT5, AT10

Description

Belt Description  T 2.5 T 5 T 10 AT 5 AT 10
Pitch                  (mm) 2.5 5 10 5 10
Tooth Base      (mm) 1.5 2.7 5.3 3.6 7.3
Tooth Depth   (mm) 0.7 1.2 2.5 1.2 2.5
Belt Height      (mm) 1.3 2.2 4.5 2.7 4.5
